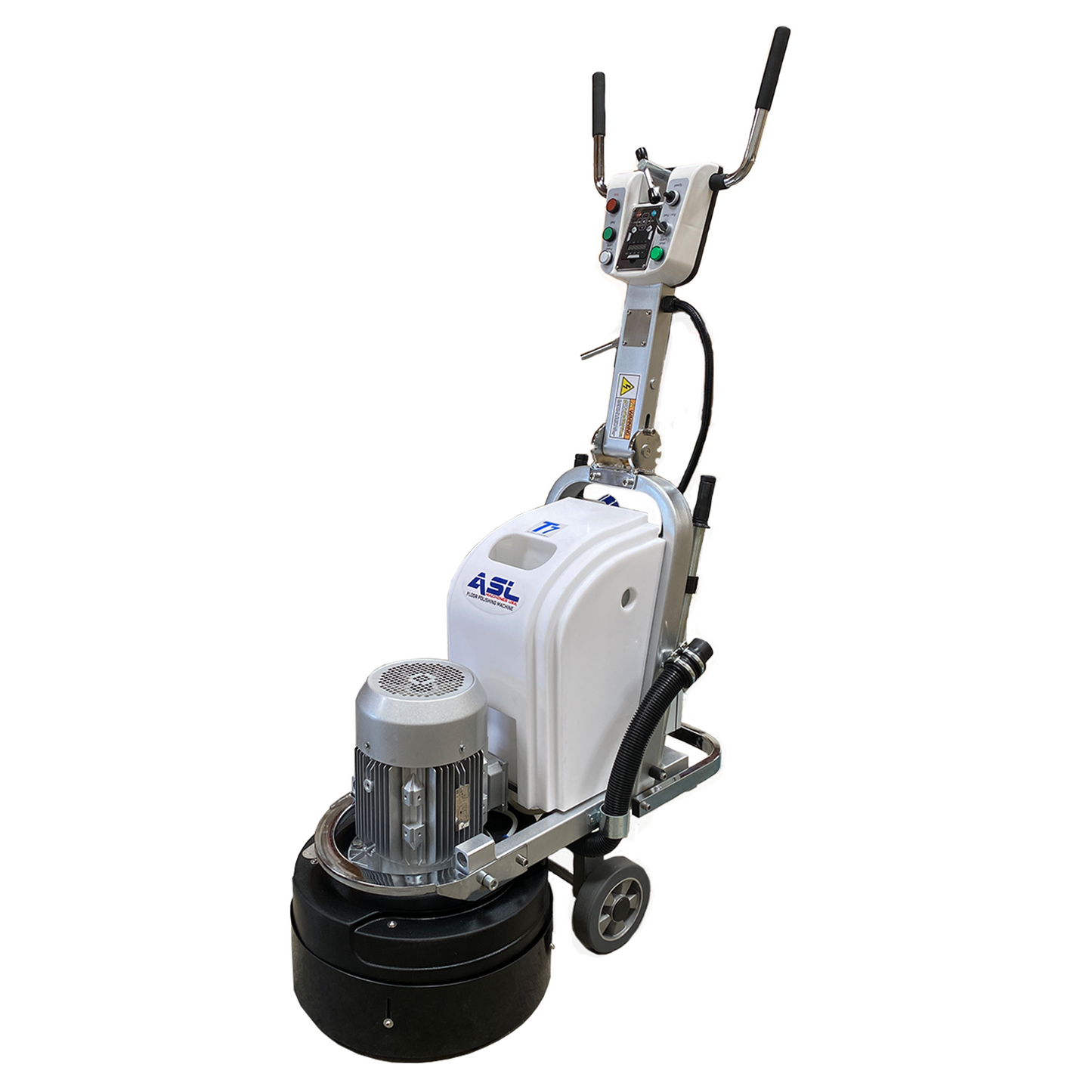

ASL 550-T7 Floor Grinding Machine

ASL 550-T7 Floor Grinding Machine

Regular price $6,954.99 USD
Regular price Sale price $6,954.99 USD
Sale Sold out
Shipping calculated at checkout.

Financing Opportunities Available

The aluminum alloy gearbox and planetary gear driver are capable of reaching a remarkable flat grind to produce smooth surfaces as well as a powerful repairing scratches function. There is a folding handle and split body design for a more convenient way to carry and transport the machine. The automatic leveling system has excellent flexibility to evenly touch the floor and perfectly balance the machine. Through the integrated system of the suction port, the machine grind and polish wet or dry. There are three different models available for this 21 inch grinder.

Description

MODEL A B C
VOLTAGE 380-440v | 3 Phase 220-240V | 1 or 3 Phase 380-440V | 3 Phase
CURRENT 13A 17A 13A
MOTOR 5.5 HP (4 KW) 7.5 HP (5.5 KW) 7.5 HP (5.5 KW)
INVERTER 5 HP (3.7 KW) 10 HP (7.5 KW) 10 HP (7.5 KW)
FREQUENCY 50/60 HZ 50/60 HZ 50/60 HZ
DISK SPEED 300-1600 RPM 300-1200 RPM 300-1200 RPM
GRINDING WIDTH 21 in (550 mm) 21 in (550 mm) 21 in (550 mm)
DISK DIAMETER 9 in X 3 (230 mm x 3) 9 in X 3 (230 mm x 3) 9 in X 3 (230 mm x 3)
WATER TANK 8 Gallons (30 L) 8 Gallons (30 L) 8 Gallons (30 L)
WEIGHT 320 lbs (145 kg) 342 lbs (155 kg) 342 lbs (155 kg)
DIMENSION 38" x 22" x 33" (970 x 550 x 850 mm) 38" x 22" x 33" (970 x 550 x 850 mm) 38" x 22" x 33" (970 x 550 x 850 mm)
