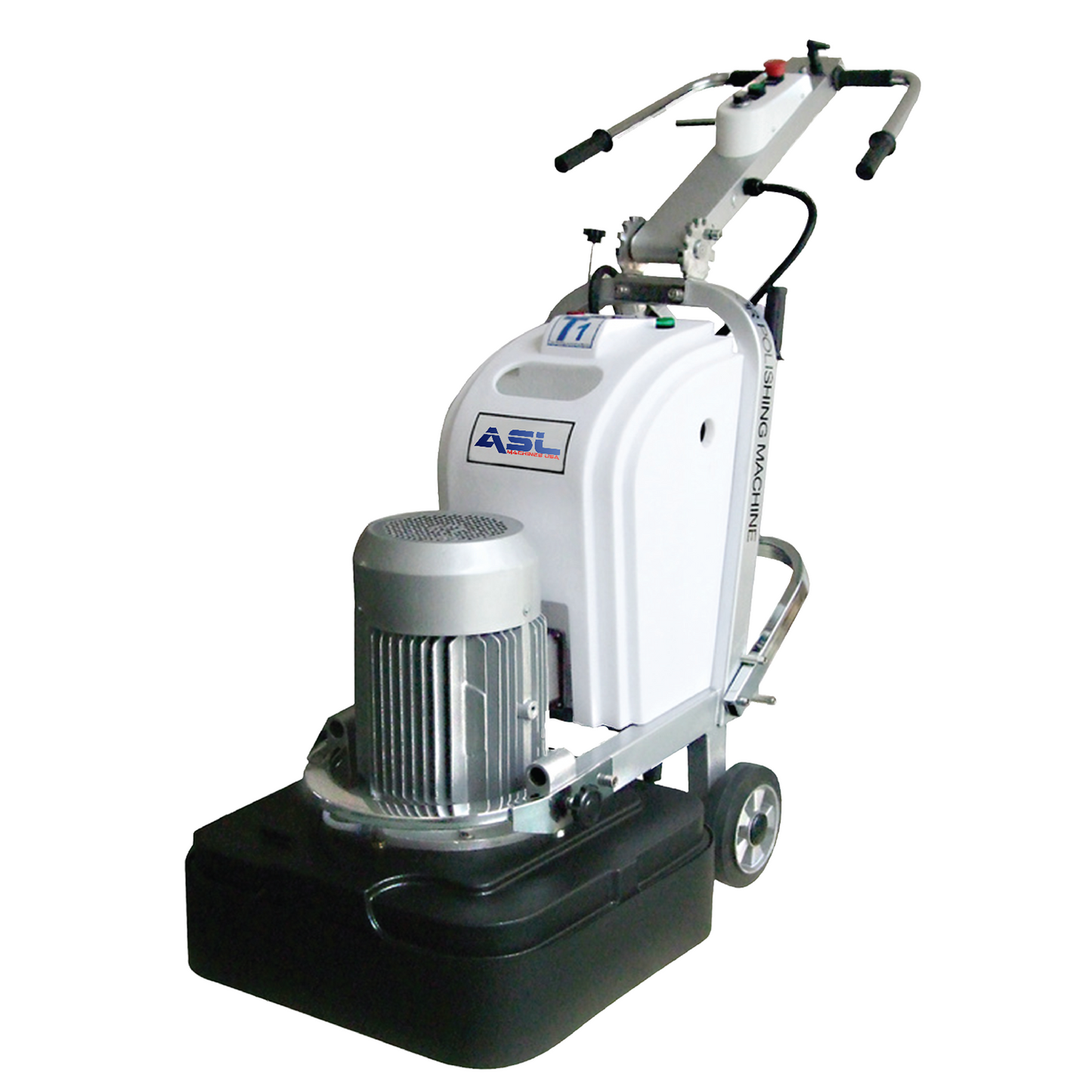

ASL 600-T1 Floor Grinding Machine
ASL 600-T1 Floor Grinding Machine
Regular price
$6,954.99 USD
Regular price
Sale price
$6,954.99 USD
Unit price
/
per
Shipping calculated at checkout.
Financing Opportunities Available
The ASL 600-T1 Floor Grinding Machine is designed to grinding and polishing various concrete floors like epoxy, wear-resistant floor, curing floor and penetration floors as well as all kinds of stone maintenance. It is a multipurpose floor grinding machine that can be used to grind and polish concrete floors wet or dry. The aluminum alloy gearbox and planetary gear driver are capable of reaching a remarkable flat grind to produce smooth surfaces as well as a powerful repairing scratches function. There is a folding handle and split body design for a more convenient way to carry and transport the machine. There are three different models available for this 24 inch grinder.
Description
| MODEL | A1 | A2 | B |
| VOLTAGE | 380-440v | 3 Phase | 220-240V | 1 or 3 Phase | 380-440V | 3 Phase |
| CURRENT | 24A | 26.9A | 24A |
| MOTOR | 10 HP (7.5 KW) | 10 HP (7.5 KW) | 15 HP (11 KW) |
| INVERTER | 10 HP (7.5 KW) | 10 HP (7.5 KW) | 15 HP (11 KW) |
| FREQUENCY | 50/60 HZ | 50/60 HZ | 50/60 HZ |
| DISK SPEED | 300-1800 RPM | 300-1600 RPM | 300-1800 RPM |
| GRINDING WIDTH | 24 in (600 mm) | 24 in (600 mm) | 27 in (700 mm) |
| DISC DIAMETER | 12 in X 4 (300 mm x 4) | 12 in X 4 (300 mm x 4) | 14 in X 4 (370 mm x 4) |
| WATER TANK | 8 Gallons (30 L) | 8 Gallons (30 L) | 8 Gallons (30 L) |
| WEIGHT | 480 lbs (217 KG) | 480 lbs (217 kg) | 661 lbs (300 kg) |
| DIMENSION | 37" x 24" x 37" (930 x 600 x 950 mm) | 37" x 24" x 37" (930 x 600 x 950 mm) | 37" x 28" x 41" (930 x 700 x 1050 mm) |
